100w led tunnel lights from China manufacturer - Shenzhen Snoowel Technology CO.,LTD

Price:	1.0~56.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SW-TN07-W100

Production Capacity: 6000-8000pcs/month

Delivery Date: 7 to 9 days

Power: 100w

Lumens: >10000lm

PF: >0.97

IP grade: IP65

Warranty: 3 years

Means of Transport: Ocean,Land,Air

Packing: Box

Product name: 100w led tunnel light

Input voltage: AC85-265V

LED chip: BridgeLux

Life: >50000hours

Certificates: CE, RoHS

Input voltage: AC85-265V, 50/60Hz
Lumens: over 10000lm
Warranty: 3 years
45mil Bridgelux led chip
CE,RoHS

Product name: Outdoot 100w led tunnel light
Model No.: SW-TN07-W100

Basic information of this outdoor 100w led tunnel light:

Model	SW-TN07-W100
Power	100w
Input Voltage	AC85-265V, AC277V is also available
LED Source	BridgeLux 45MIL
Frequency Range	50-60Hz
Power Factor	>97%
Total Harmonic Distortion	<15%
Color Temperature	2700-7000K
Color Rendering Index	>78Ra
LED Lighting Efficiency	over 100lm/w
Working Environment	Working temperature:-40°C~+55°C
Working Environment	Working humidity:10%-90%
IP Rating	IP65
Working Life	>50,000 hours
Body &Shade Material	Aluminum alloy
Guaranty	3-year warranty
Beam Angle	120°/60°
Certificates	CE & ROHS

Size draft of this outdoor 100w led tunnel light:

Outdoor 100w led tunnel light from Chinese manufacturer

light distribution curve of this 100w led flood tunnel lighting:
Outdoor 100w led tunnel flood lights with Bridgelux chip

Features of this our led tunnel flood lights:

1. Bridgelux LEDs, top brand in USA;
2. MeanWell Power Supply, more stable;
3. AC85-265V Input Voltage range, 50-60Hz Frequency range;
4. IP65, meet the standard of protection grade;
5. Color Rendering Index: Ra>75, approximate to the nature color;
6. Light Luminous Efficiency: 105LM/W, perfect performance;
7. High power LED source, equivalent to 2.5~4 times traditional lights;
8. COB Point Light Source, no ghosting as panel light source shows;
9. Long Life-span, over 50000h under the circumstances of normal use;
10. Energy Saving and Environment Friendly, no pollutant to the environment;
11. Die-Cast Aluminium Light Housing, best for heat sinking;
12. Easy for install, no cost on maintenance after the installing;
13. Best partner of the solar panel, popular applied to solar energy;
14. Various applications: street, highway, square, park, garden, courtyard, etc;
15. CE & RoHS certificates are all approval for this light.

Illimiance flux of the 100w led tunnel lights:
Outdoor 100w led tunnel flood lights with Bridgelux chip

Applications:

1.Tunnel, Subway, Underground Lighting;

2.Gymnasium, Sports Stadium Lighting;

3.Building, Billboard Lighting;

4.Gas Station, Garage Lighting;

5.Park, Garden Lighting;

6.Workshop, Factory Lighting;

7.Warehouse, Storage Lighting;

8. Yard, Square Lighting;

9.Road,Highway Lighting;

10.Station,Dock,Deck,Ship,Boat Lighting;

11.Aquarium Lighting etc.
Outdoor 100w led tunnel light from Chinese manufacturer

SNOOWEL after service:
*If the driver of our street light failed, we will send you a new one for replacement all at our cost;

*If the led array of our street light failed, we will send you a new one for replacement all at our cost;

*For quality problem of unclear reason, we will send new items for replacement first all at our cost.

We have very strict quality control from materials perchasing to finished products delivery, all the products will be tested and aged strictly before shipping, so the quality will be very stable.

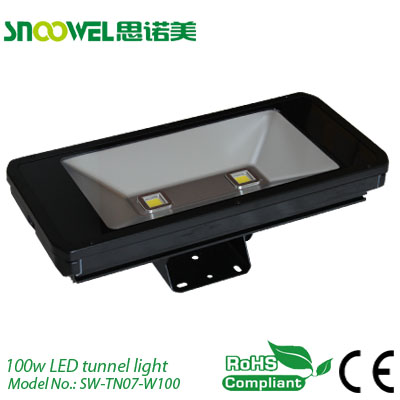

Actual picture of 100w led tunnel light with 120 degree beam angle:
Outdoor 100w led tunnel light from Chinese manufacturer
